How Metal with Silicone Overmolding Enhances Product Waterproofing: A Comprehensive Guide
Introduction:
In today's competitive market, waterproofing remains a critical feature for electronic devices, consumer products, automotive components, and industrial equipment. The integration of metal with silicone overmolding has emerged as a revolutionary approach, offering unparalleled protection against water ingress while maintaining structural integrity and aesthetic appeal. Our expertise in advanced waterproofing solutions reveals how this innovative combination elevates product durability, performance, and user satisfaction.
The Science Behind Metal and Silicone Overmolding for Waterproofing
Metal components provide the backbone of many products due to their strength, heat resistance, and durability. However, metals alone are susceptible to corrosion and water penetration if not properly protected. Silicone overmolding introduces a flexible, waterproof barrier that encapsulates critical areas, sealing gaps, and preventing water ingress.
Key advantages include:
Superior sealing capability due to the elastomeric nature of silicone.
Enhanced corrosion resistance for metal parts.
Mechanical protection against shocks, vibrations, and environmental stressors.
Aesthetic versatility, allowing seamless integration of design and functionality.
Why Metal with Silicone Overmolding Outperforms Traditional Waterproofing Methods
Traditional waterproofing solutions, such as gaskets or sealants, often fall short in dynamic environments, where constant movement, pressure, or temperature fluctuations occur. In contrast, metal with silicone overmolding offers:
Flexible, long-lasting seals that adapt to product movements.
High-temperature resistance, maintaining waterproof integrity under extreme conditions.
Reduced assembly complexity, streamlining manufacturing processes.
Enhanced mechanical strength combined with waterproof properties.
Materials Selection: The Foundation of Effective Overmolding
Metals Used in Overmolding Applications
Aluminum: Lightweight, corrosion-resistant, ideal for portable devices.
Stainless Steel: Superior strength and corrosion resistance, suitable for harsh environments.
Brass and Copper: Excellent thermal and electrical conductivity, used in specialty applications.
Silicone Elastomers for Overmolding
High-temperature silicone: Withstands temperatures up to 300°C.
Medical-grade silicone: Biocompatible, used in wearable devices.
UV-resistant silicone: Maintains flexibility and waterproof integrity under prolonged sunlight exposure.
Choosing the right combination of metal and silicone is crucial to optimize waterproofing, durability, and performance.
Manufacturing Process: Precision in Overmolding for Waterproofing
Step 1: Metal Component Preparation
Surface treatment:
Cleaning, anodizing, or plating to improve adhesion.Design considerations:
Incorporating features like ribs or undercuts for mechanical anchoring.Step 2: Silicone Overmolding
Injection molding:
Silicone is injected into molds containing the metal component.Curing process:
Ensures a seamless, bubble-free bond.Quality control:
Inspection for voids, cracks, and proper adhesion.Step 3: Final Assembly
Precise fitting of overmolded components into the product housing.
Additional sealing or reinforcement if necessary.
Design Considerations for Maximizing Waterproofing Efficiency
Seamless integration:
Minimize gaps and overlaps where water could penetrate.Overmold thickness:
Optimize for flexibility without compromising structural strength.Edge and corner sealing:
Critical points prone to water ingress require reinforced overmolding.Ventilation and drainage:
Incorporate features to prevent water accumulation while maintaining waterproof integrity.Application Examples of Metal with Silicone Overmolding
Smartphones, wearables, and outdoor gadgets benefit from metal casings with silicone seals that resist water, sweat, and environmental moisture.

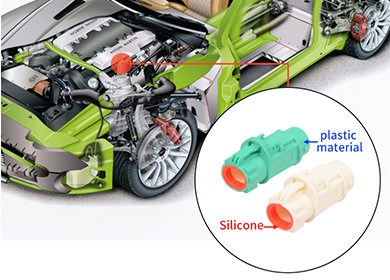

Sensors, connectors, and control modules are protected against water, mud, and temperature extremes through metal shells with silicone overmolds.

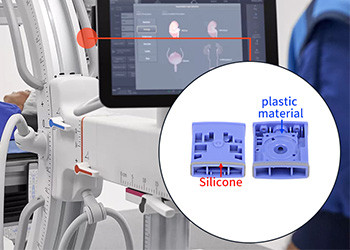

Implantable and wearable medical devices utilize biocompatible silicone overmolding on metal frameworks to ensure waterproofing and patient safety.
Feature | Benefit | Impact on Product Performance |
| Enhanced Waterproof Seal | Prevents water ingress | Extends product lifespan and reliability |
Mechanical Durability | Resists shocks, vibrations | Maintains integrity in demanding environments |
| Temperature Resistance | Operates under extreme heat/cold | Ensures consistent performance |
| Corrosion Resistance | Protects metal components | Reduces maintenance costs |
| Design Flexibility | Custom shapes and features | Meets aesthetic and functional goals |
Challenges and Solutions in Metal-Silicone Overmolding
Adhesion issues:
Metal and silicone naturally have poor adhesion.To address this:
Surface treatments like plasma or primer application are employed.
Thermal expansion mismatch:
Different expansion rates can cause delamination.
Material selection with compatible thermal properties.
Design features such as flexible overmold geometries.
Manufacturing complexity:
Precise control of injection parameters and curing is essential.
Advanced molding equipment and process controls ensure consistency.
Prototyping and testing to optimize parameters before mass production.
Future Trends in Metal and Silicone Overmolding for Waterproof Products
Smart overmolds:
Incorporation of conductive silicone for embedded sensors.Eco-friendly materials:
Development of sustainable silicones and recyclable metals.Nano-coatings:
Additional protective layers to enhance waterproofing and self-healing capabilities.Automation:
Increased use of robotics for precise, high-volume overmolding.Conclusion: Elevating Waterproofing Standards with Metal and Silicone Overmolding
The integration of metal with silicone overmolding represents a paradigm shift in waterproofing technology. By leveraging the strength and durability of metals combined with the flexibility and sealing properties of silicone, manufacturers can create products that withstand the most challenging environmental conditions. This innovative approach not only enhances waterproofing but also improves overall product resilience, aesthetics, and user confidence.
As industries continue to demand robust, waterproof solutions, metal with silicone overmolding will remain at the forefront of advanced manufacturing techniques, setting new standards for performance, reliability, and design excellence.
