What Is FPC With Silicone OverMolding Manufacturing?
Introduction
Many engineers and sourcing teams ask whether FPC with silicone overmolding is the right solution for waterproof electronic modules, wearable sensors, medical devices, or automotive electronics. The answer matters because flexible circuits are sensitive to moisture, bending, dust, vibration, and assembly stress. This article explains how FPC silicone overmolding works and how to choose the right manufacturing partner.
Answer Excerpt
FPC with silicone overmolding manufacturing is a custom process that molds liquid silicone rubber over flexible printed circuits to create waterproof, dustproof, flexible, and protective electronic components. It is widely used for wearable sensors, medical electronics, automotive electronic modules, waterproof connectors, smart devices, and OEM/ODM projects requiring stable sealing, strong bonding, and long-term reliability.
Transition Paragraph
For B2B buyers, the key question is not only what FPC silicone overmolding is. It is whether the structure can survive real working conditions.
People Also Ask: What Is FPC With Silicone OverMolding Manufacturing?
FPC with silicone overmolding manufacturing is a process that combines flexible printed circuits with liquid silicone rubber or silicone material through insert molding or overmolding. The FPC is placed into a precision mold, and silicone is molded around selected areas to protect, seal, insulate, or support the flexible circuit.
Unlike ordinary silicone parts, FPC silicone overmolding requires both electronic structure understanding and silicone molding experience. The supplier must consider FPC thickness, copper traces, exposed pads, connector areas, bending zones, silicone flow, insert positioning, bonding strength, and final assembly requirements.
This process is especially valuable when electronic parts need waterproof sealing, dust protection, soft-touch contact, bending protection, strain relief, or integration into a compact device structure. Instead of using glue, tape, or separate rubber gaskets, silicone overmolding can form a more integrated and stable protective layer around the FPC.
For Shenzhen Liyongan Silicone Rubber Products Co., Ltd., FPC silicone overmolding is part of a wider custom silicone manufacturing capability, including liquid silicone injection molding, silicone over plastic, silicone over metal, silicone and silicone overmolding, waterproof silicone seals, medical grade silicone parts, wearable device seals, and industrial custom silicone rubber parts.
People Also Ask: How Does FPC Silicone Overmolding Work?

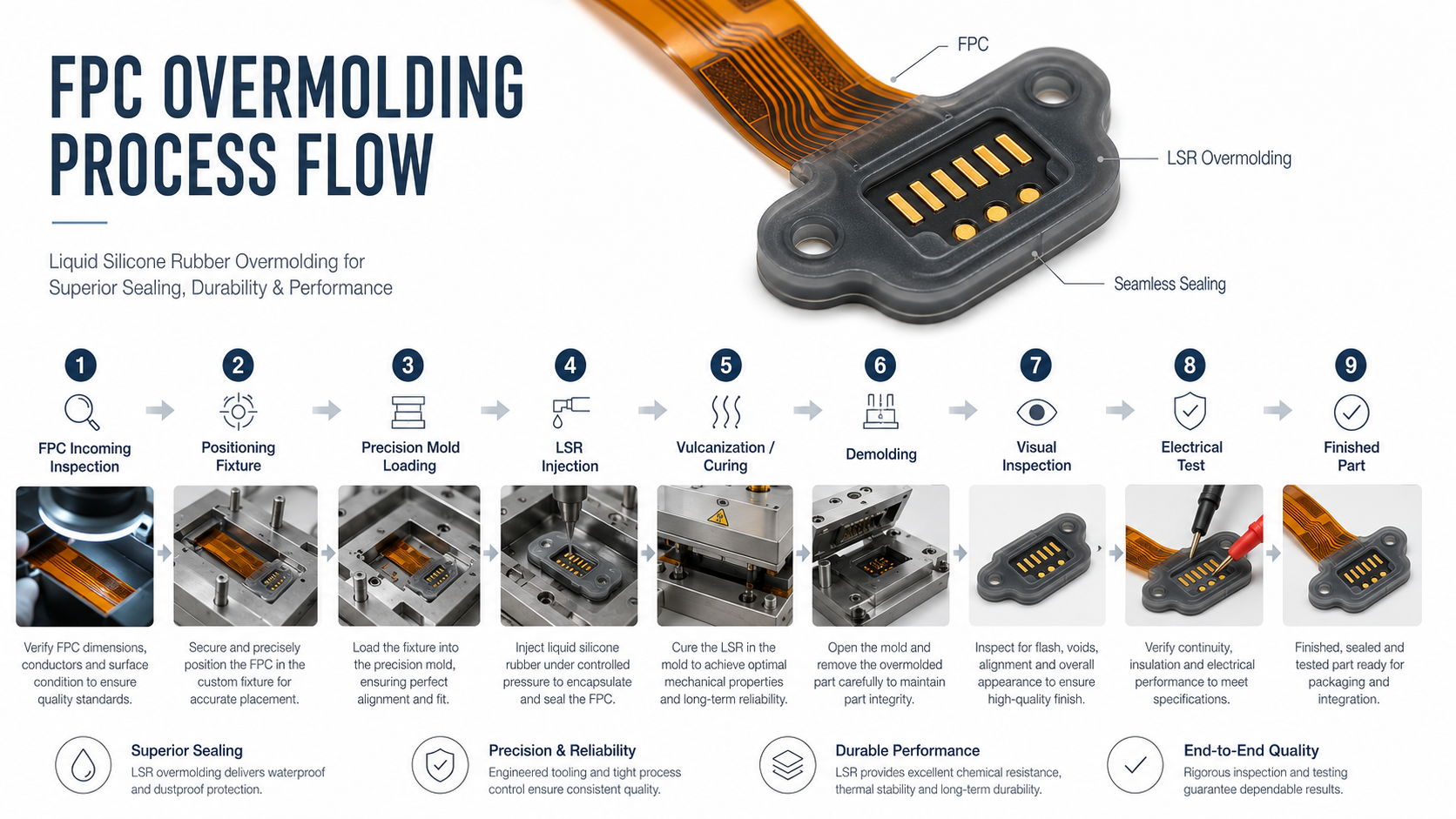

The FPC silicone overmolding process usually starts with project evaluation. Engineers review the FPC drawing, 3D product structure, exposed copper pads, connector position, bending requirements, waterproof level, silicone hardness, application environment, and assembly method.
Next, the mold and fixture design are evaluated. FPC is thin, flexible, and easy to deform, so accurate positioning is critical. If the FPC shifts during molding, the silicone layer may cover the wrong area, expose the wrong position, or affect electrical connection. The mold must hold the FPC securely while avoiding damage to copper traces, solder joints, components, or contact areas.
After the FPC is positioned inside the mold, liquid silicone rubber is injected or molded around the selected areas. The silicone cures under controlled temperature and pressure, forming a protective layer, sealing edge, soft contact surface, strain relief structure, or waterproof barrier.
After molding, parts are demolded and inspected. For FPC overmolded parts, inspection should include appearance, dimensions, sealing edges, flash, bonding condition, exposed pad position, bending area, and electrical function if required. Some projects may also require waterproof testing, pull testing, aging testing, or assembly verification.
People Also Ask: Why Is Silicone Used for FPC Overmolding?
Silicone is widely used for FPC overmolding because it is flexible, soft, stable, and suitable for demanding electronic environments. It can protect sensitive circuit areas while still allowing the assembly to remain lightweight and compact.
The first advantage is waterproof sealing. Many FPC assemblies are used in wearable devices, medical sensors, automotive electronics, and smart hardware where moisture can cause short circuits or signal failure. Silicone overmolding can help seal vulnerable edges, cable exits, sensor zones, or connector areas.
The second advantage is flexibility. FPC is selected because it can bend or fit into limited space. A rigid protective material may damage the circuit or reduce flexibility. Silicone can provide protection while maintaining soft support around the flexible circuit.
The third advantage is electrical insulation. Silicone is commonly used as an insulating elastomer around electronic parts, helping separate conductive areas and reducing exposure to dust, sweat, water, and handling stress.
The fourth advantage is comfort and skin-contact suitability. In wearable and medical device applications, silicone can provide a soft-touch surface for parts that may contact the human body.
The fifth advantage is structure integration. FPC silicone overmolding can combine sealing, protection, insulation, positioning, and soft-touch functions into one molded part, helping reduce assembly steps and improve product consistency.
People Also Ask: What Products Use FPC With Silicone Overmolding?

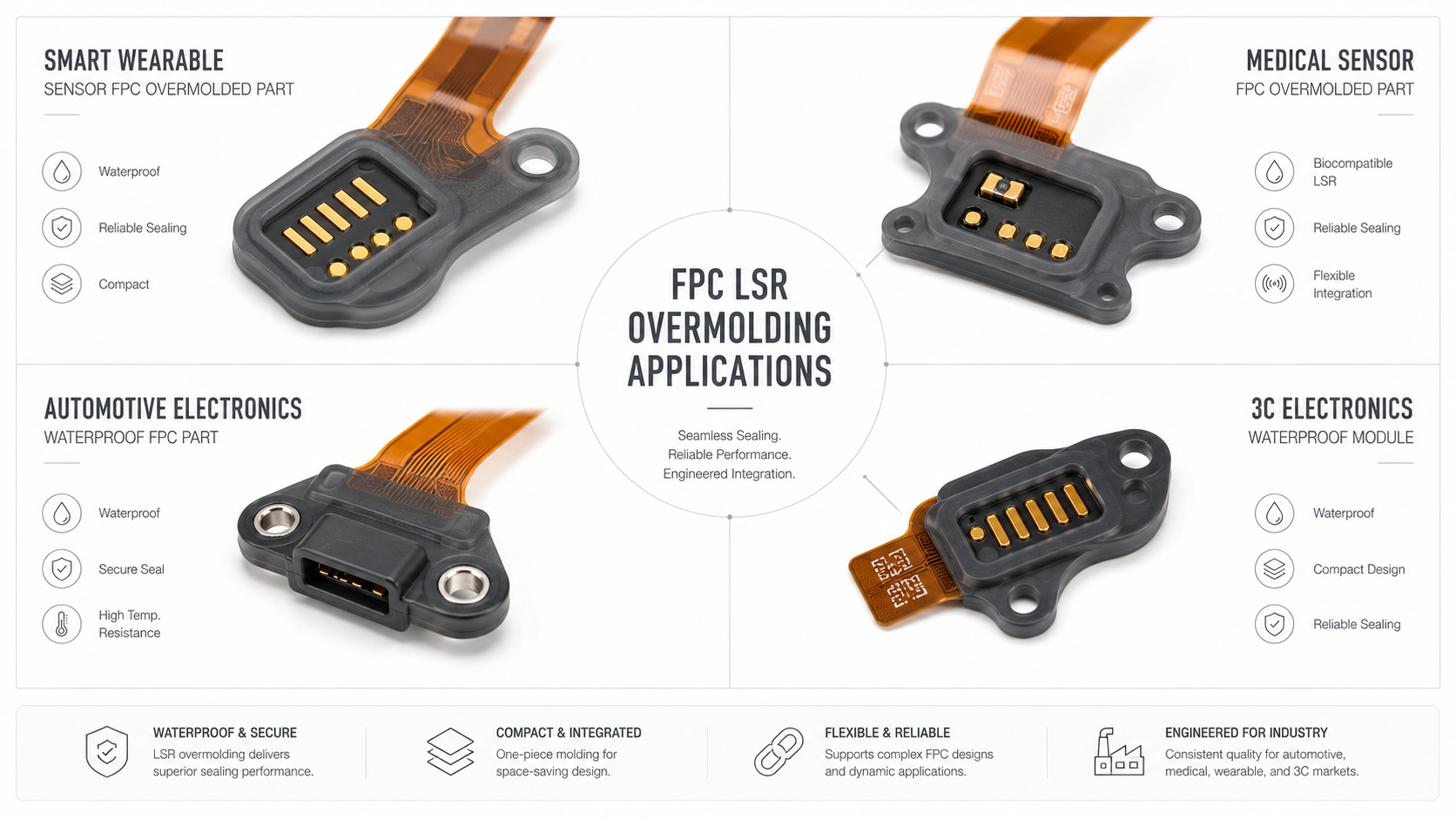

FPC with silicone overmolding is commonly used in products that need compact electronic structure, flexible circuit protection, waterproof sealing, and stable assembly.
In wearable devices, FPC silicone overmolding can be used for smart watch sensors, fitness tracker modules, health monitoring patches, charging contact seals, microphone seals, button sealing parts, and flexible sensor assemblies. These products often need sweat resistance, skin comfort, light weight, and reliable sealing.
In medical and health care devices, FPC overmolding can be used for wearable medical sensors, diagnostic device modules, respiratory device electronics, monitoring device seals, and flexible medical electronic components. Medical applications usually require stable materials, clean production awareness, precise structure, and reliable sealing.
For healthcare projects, medical grade silicone parts can be customized for device sealing, soft-touch protection, fluid control, sensor integration, and patient-contact structures.
In automotive electronics, FPC silicone overmolding can be used for sensor modules, connector sealing parts, wire harness interface protection, battery management system components, control modules, and waterproof electronic assemblies. Automotive applications often require anti-vibration, temperature resistance, aging resistance, and stable sealing performance.
In consumer electronics, this process can be used for waterproof interface modules, smart device internal circuits, Type-C sealing modules, flexible cable protection, compact sensors, and mini electronic assemblies. These parts are often small and require high precision.
People Also Ask: What Is the Difference Between FPC Silicone Overmolding and Traditional Sealing?
Traditional sealing often uses separate rubber gaskets, glue, tapes, potting compounds, or manually assembled sealing structures. These methods may be suitable for some products, but they can create risks in compact electronic modules.
FPC silicone overmolding integrates silicone directly onto selected FPC areas. This can improve positioning accuracy, reduce assembly steps, and form a more stable sealing structure. For small electronic parts, overmolding also reduces the risk of gasket displacement or uneven glue application.

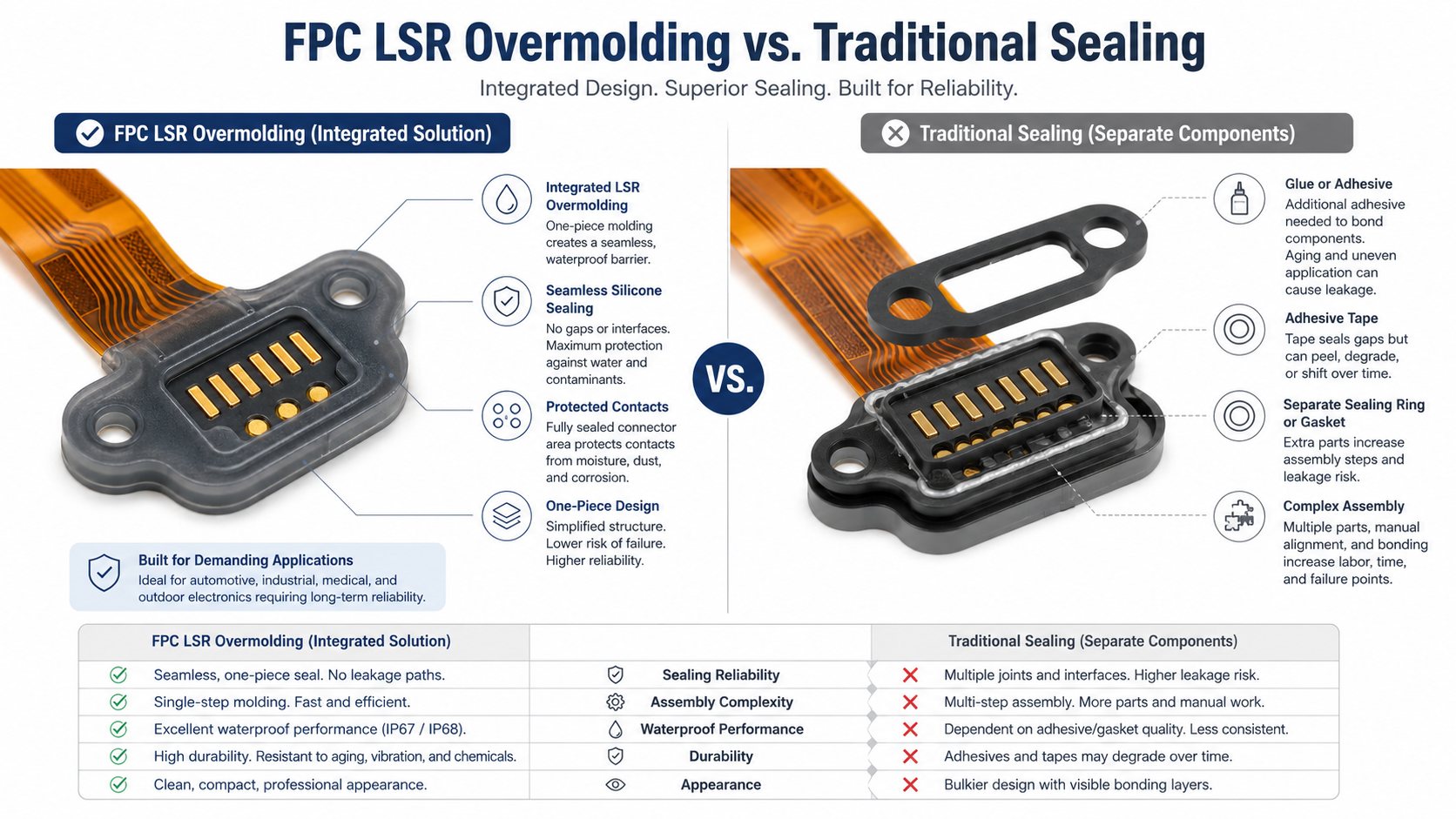

FPC Silicone Overmolding vs Traditional Sealing
| Comparison Item | FPC Silicone Overmolding | Traditional Sealing |
|---|---|---|
| Structure | Silicone is molded directly onto selected FPC areas | Uses separate gasket, glue, tape, or potting material |
| Sealing Stability | More integrated sealing structure | Depends on assembly accuracy and adhesive control |
| Assembly Process | Can reduce manual assembly steps | Often requires extra assembly or dispensing process |
| Design Flexibility | Suitable for compact, thin, flexible electronic modules | May be limited by space, gasket position, or glue flow |
| Bonding Risk | Requires correct material, mold, and process control | May face glue aging, peeling, or uneven sealing |
| Typical Applications | Wearable sensors, medical electronics, automotive modules, waterproof electronics | General housings, simple joints, low-complexity sealing areas |
| Buyer Type | OEM/ODM buyers needing precision, waterproofing, and compact structure | Buyers needing simple sealing with lower tooling investment |

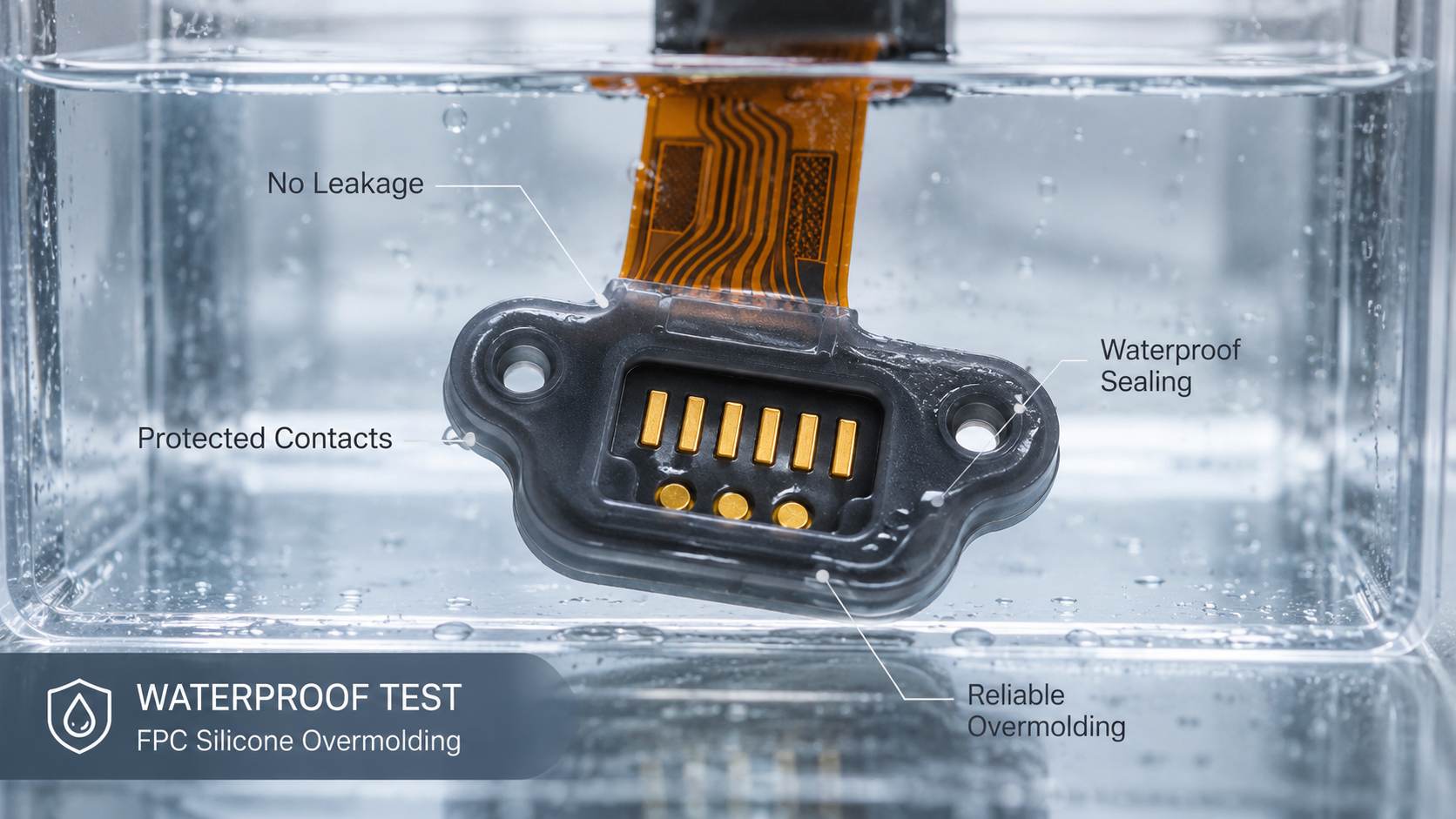

People Also Ask: Can FPC Silicone Overmolding Achieve IP67 or IP68 Waterproof Sealing?
FPC silicone overmolding can support IP67 or IP68 waterproof sealing when the product design, silicone material, mold accuracy, bonding structure, and assembly conditions are properly controlled. However, waterproof performance is not decided by silicone alone.
Waterproof success depends on sealing geometry, silicone compression, FPC surface condition, insert positioning, bonding area, exposed contact design, mating part tolerance, and final product assembly. If the design has an open path for water, even a good silicone material cannot guarantee sealing performance.
For wearable devices, waterproof risk often appears around sensor openings, charging contacts, button areas, microphone holes, and flexible circuit exits. For automotive electronics, risk areas include connectors, wire harness interfaces, battery pack electronic modules, and sensor housings.
For automotive electronics and EV applications, automotive waterproof silicone seals can help protect connector areas, sensor modules, wire harness interfaces, and battery-related electronic structures.
A professional FPC silicone overmolding supplier should review waterproof risk during the DFM stage, not after mass production. Early design review can reduce mold modification, sampling delays, and sealing failure.
People Also Ask: What Design Factors Affect FPC Silicone Overmolding Quality?
The quality of FPC silicone overmolding depends on several important design and production factors.
The first factor is FPC positioning. Because FPC is thin and flexible, it must be accurately fixed inside the mold. Poor positioning may cause offset, exposed copper misalignment, uneven silicone thickness, or blocked contact areas.
The second factor is silicone flow control. Liquid silicone can flow into small spaces, which is useful for precision molding but also creates flash risk if the mold is not well designed. Mold sealing, venting, parting line control, and insert fit are very important.
The third factor is bonding design. Silicone does not automatically bond strongly to every FPC surface. Bonding may require compatible materials, surface treatment, primer, mechanical locking, or special structure design. For waterproof projects, bonding reliability is especially important.
The fourth factor is bending protection. FPC may need to bend during assembly or product use. The silicone layer should protect sensitive areas without creating sharp stress points that may damage copper traces.
The fifth factor is electrical function. Overmolding should not cover exposed pads, connector contacts, test points, or areas that need electrical connection. Engineers must define covered and uncovered areas clearly before tooling.
People Also Ask: What Defects Can Happen in FPC Silicone Overmolding?
Common defects include FPC displacement, silicone flash, incomplete filling, bubbles, poor bonding, blocked contact pads, uneven silicone thickness, deformation, contamination, and electrical failure.
FPC displacement is a major risk because flexible circuits are thin and easy to move during molding. Accurate fixtures and mold design are required to hold the FPC in the correct position.
Flash can happen when liquid silicone flows into tiny gaps around the insert, mold parting line, or contact area. Excess flash may affect assembly, appearance, electrical connection, or sealing structure.
Poor bonding can cause peeling, edge lifting, water leakage, or delamination. This is dangerous for waterproof electronic modules because a small separation path may allow moisture to enter the product.
Bubbles or voids may reduce appearance quality and sealing stability. They can be caused by trapped air, poor venting, material issues, or process instability.
A reliable manufacturer should prevent these defects through DFM review, mold precision, insert positioning control, material selection, molding parameter optimization, and strict inspection.
People Also Ask: How Do You Choose an FPC Silicone Overmolding Manufacturer?
Choosing an FPC silicone overmolding manufacturer requires evaluating both silicone molding capability and electronic insert molding experience. This process is more complex than ordinary silicone molding because the supplier must protect the FPC while achieving stable silicone sealing.
A capable supplier should provide DFM support before mold opening. This helps identify FPC positioning risks, bonding risks, flash risks, sealing problems, exposed pad problems, and assembly interference.
The manufacturer should also have experience with liquid silicone injection molding, silicone overmolding, insert molding, silicone over plastic, silicone over metal, silicone over FPC, and waterproof silicone seals. For compact electronic modules, small design details can determine whether the final part can pass assembly and waterproof testing.
Shenzhen Liyongan Silicone Rubber Products Co., Ltd. owns a 4500+ square meter silicone processing plant in China, with 12 liquid silicone injection molding machines, 26 compression molding machines, 20 CCD inspection devices, a mold workshop, liquid silicone molding workshop, solid silicone molding workshop, dust-free workshop, engineering team, production team, and quality control team.
For global OEM/ODM buyers, silicone overmolding solutions can be customized for FPC, metal, plastic, silicone, waterproof seals, medical components, wearable electronics, automotive electronics, and industrial custom silicone parts.
People Also Ask: What Information Should Buyers Provide for an FPC Overmolding Project?
To evaluate an FPC silicone overmolding project accurately, buyers should provide clear technical information. Useful files include FPC drawings, 3D assembly files, product photos, samples, silicone coverage area, exposed pad area, bending requirements, waterproof level, hardness requirement, material requirement, and target application.
For electronic projects, the supplier may also need to know whether the FPC has components, solder joints, copper pads, stiffeners, connectors, or surface treatment. These details affect mold design, insert positioning, silicone flow, and electrical reliability.
Buyers should also provide the application environment. For example, will the part be used in wearable devices, medical devices, automotive electronics, beauty devices, or industrial electronics? Will it face sweat, water, oil, high temperature, low temperature, vibration, bending, or repeated cleaning?
The more complete the project information, the faster the manufacturer can provide DFM suggestions, mold quotation, sampling plan, production risk evaluation, and mass production support.
FAQ About FPC With Silicone OverMolding Manufacturing
1. What is FPC silicone overmolding used for?
FPC silicone overmolding is used to protect and seal flexible printed circuits in wearable devices, medical electronics, automotive electronics, waterproof connectors, smart sensors, beauty devices, and compact electronic modules. It helps improve waterproofing, dustproofing, insulation, bending protection, and structural integration.
2. Can silicone overmolding protect FPC from water?
Yes. Silicone overmolding can help protect FPC from water when the sealing structure, silicone material, mold accuracy, bonding design, and final assembly are properly controlled. For IP67 or IP68 waterproof projects, DFM review and testing are important before mass production.
3. Can liquid silicone be molded directly onto FPC?
Yes. Liquid silicone can be molded onto FPC through insert molding or overmolding. However, the process requires accurate FPC positioning, proper mold design, controlled silicone flow, and protection of exposed pads, connectors, and bending areas.
4. What industries use FPC with silicone overmolding?
Common industries include wearable electronics, medical devices, automotive electronics, new energy vehicles, smart sensors, consumer electronics, beauty and health care devices, and industrial electronic products.
5. What information is needed for an FPC silicone overmolding project?
Buyers should provide FPC drawings, 3D files, samples, silicone coverage area, exposed contact areas, material requirements, hardness, waterproof level, bending requirements, application environment, estimated quantity, and testing requirements.
6. How do I choose a reliable FPC silicone overmolding manufacturer?
Choose a manufacturer with liquid silicone injection molding equipment, mold design capability, FPC insert molding experience, silicone overmolding expertise, DFM support, quality inspection, and experience in waterproof electronic components.
Conclusion
FPC with silicone overmolding manufacturing is a valuable process for protecting flexible printed circuits in compact, waterproof, and high-reliability electronic products. It combines the flexibility of FPC with the sealing, insulation, softness, and protection of silicone.
For B2B buyers, the key is not only whether silicone can be molded onto FPC. The real challenge is achieving accurate positioning, stable bonding, reliable waterproof sealing, clean appearance, and repeatable mass production.
Shenzhen Liyongan Silicone Rubber Products Co., Ltd. provides custom FPC silicone overmolding, liquid silicone injection molding, silicone over plastic, silicone over metal, waterproof silicone seals, wearable device silicone parts, medical grade silicone parts, automotive electronic sealing parts, and industrial custom silicone components.
If you are developing waterproof FPC assemblies, wearable sensor modules, medical electronic seals, automotive electronic components, or custom silicone overmolded parts, you can request a custom FPC silicone overmolding quote by sharing your drawings, samples, or project requirements with our engineering team.
What type of FPC silicone overmolding project are you developing? Leave a comment, share this article with your engineering or sourcing team, or contact us to discuss your custom silicone overmolding requirements.
