How Do You Validate Silicone Overmolded Parts Before Mass Production?

Introduction

A silicone overmolded sample may look good, but that does not mean the part is ready for mass production. Before bulk manufacturing, engineers need to verify bonding strength, dimensions, sealing performance, flash control, insert positioning, material stability, appearance, packaging, and repeatability. This guide explains how to validate custom silicone overmolded parts before moving from sample approval to mass production.

Answer Excerpt

To validate silicone overmolded parts before mass production, buyers should check drawing conformity, substrate positioning, silicone bonding, part dimensions, flash level, sealing structure, waterproof performance, material hardness, appearance quality, pilot production consistency, packaging, and inspection standards. This process helps reduce leakage, peeling, assembly failure, dimensional variation, and batch quality problems in custom LSR overmolding projects.

Transition Paragraph

Below are the key questions engineers, sourcing teams, quality managers, and OEM/ODM buyers usually ask before approving silicone overmolded parts for production.

People Also Ask: Why is validation important before silicone overmolded parts enter mass production?

Validation is important because a silicone overmolded part is not only a molded rubber component. It is usually a functional structure that combines silicone with plastic, metal, FPC, or another silicone substrate. If bonding, sealing, tolerance, or insert positioning is unstable, the final product may fail after assembly or after shipment.

A first sample usually proves basic feasibility. It shows that the mold can form the part and that the structure is possible. But mass production needs more than one good sample. It requires repeatability across batches, stable process parameters, consistent insert positioning, controlled flash, acceptable bonding strength, and reliable final assembly performance.

For example, a waterproof connector seal may pass visual inspection but fail after compression testing. A silicone over plastic part may look clean but peel after bending. A metal insert overmolded with silicone may pass the first pull test but fail after aging. An FPC silicone overmolded part may look correct but cover a contact pad by a small offset.

This is why validation should happen before the purchase order moves into full production. A professional manufacturer should help buyers check critical points before scaling up.

For complex overmolding projects, design and tooling services help review mold structure, DFM risks, sealing surfaces, parting lines, insert positioning, and mass production feasibility before final approval.

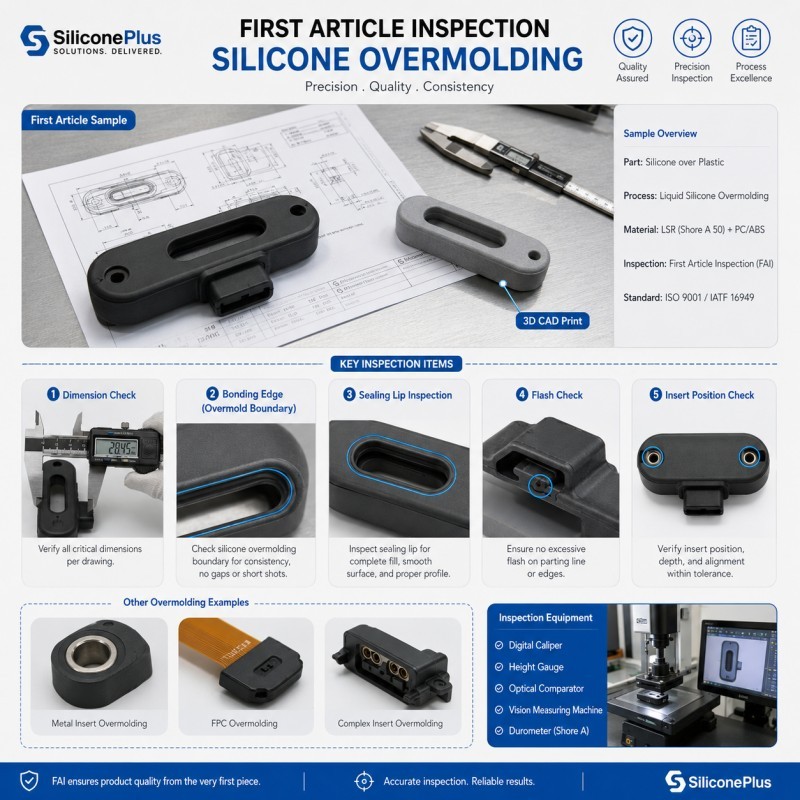

People Also Ask: What should be checked after the first silicone overmolded samples are made?

After the first silicone overmolded samples are made, buyers should check appearance, dimensions, bonding, flash, insert alignment, sealing function, material hardness, assembly fit, and whether the part matches the approved drawing or sample standard.

Appearance inspection should check surface defects, color consistency, bubbles, stains, flow marks, deformation, contamination, and obvious molding defects. For medical, consumer electronics, beauty devices, and wearable parts, appearance may directly affect product value.

Dimensional inspection should compare the sample with drawings. For sealing parts, small dimensions matter. The height of a sealing lip, thickness of a gasket, position of an overmolded edge, or location of an exposed insert may affect final assembly.

Bonding inspection is critical for overmolded parts. Silicone must stay attached to the substrate during use. The buyer and manufacturer should define whether the product needs peel testing, pull testing, bending testing, aging testing, or only visual bonding confirmation.

Flash inspection should confirm whether flash appears in functional areas. Flash near a sealing surface, connector contact, FPC pad, button movement area, or assembly groove may cause failure even if the rest of the part looks acceptable.

Assembly testing should check whether the part fits into the final product. A silicone part may meet its own drawing but still fail in the full assembly if the mating part tolerance is not considered.

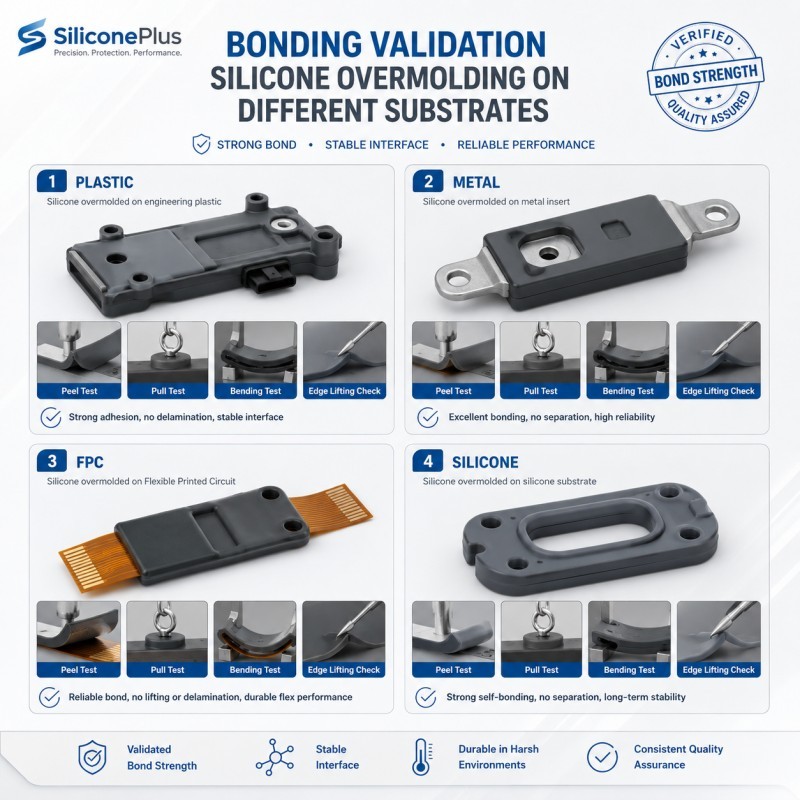

People Also Ask: How do you validate bonding between silicone and the substrate?

Bonding validation depends on the substrate type and application. Silicone over plastic, silicone over metal, FPC silicone overmolding, and silicone over silicone all require different bonding checks.

For silicone over plastic, engineers should check whether the silicone layer stays attached after bending, pulling, compression, or assembly. Plastic material, surface treatment, mold temperature, and mechanical locking design can affect bonding performance.

For silicone over metal, surface condition is very important. Oil, oxidation, plating, or poor cleaning may weaken bonding. Validation may include pull testing, peel testing, edge lifting inspection, or aging after environmental exposure.

For FPC silicone overmolding, bonding validation must also protect electrical function. The silicone should seal and protect the selected area without covering pads, damaging copper traces, or creating stress at bending zones.

For silicone over silicone, material compatibility and curing condition are key. The overmolded layer should not peel from the first silicone substrate during stretching, washing, compression, or long-term use.

For electronic housings, connector structures, wearable parts, and waterproof modules, plastic with silicone overmolding requires careful material selection, bonding design, insert positioning, and process control.

People Also Ask: How do you validate waterproof silicone overmolded parts?

Waterproof validation should be based on the real product structure, not only the silicone part itself. A silicone seal may work only when it is compressed correctly inside the final assembly.

For waterproof silicone overmolded parts, engineers should review sealing geometry, compression ratio, mating surface, assembly pressure, groove design, parting line position, and possible leakage paths. Then they should test the part under defined conditions.

The buyer and supplier should define the test method clearly. Is the target IP67 or IP68? What is the water depth? How long is the test time? Is there pressure? Is the test done after assembly? Should the part be tested before and after aging, vibration, or repeated assembly?

For mobile phones, smart devices, wearable electronics, automotive connectors, medical device housings, and industrial products, water entry may happen through small gaps. This includes ports, buttons, connector edges, housing seams, cable exits, FPC areas, or metal insert boundaries.

A waterproof failure does not always mean the silicone material is bad. It may be caused by poor compression, incorrect groove design, insufficient bonding, parting line flash, tolerance stack-up, or wrong assembly pressure.

Validation should therefore check both the silicone component and the complete product structure.

People Also Ask: What dimensional tolerances should be controlled before mass production?

Dimensional tolerance should be controlled on all functional areas, especially sealing lips, gasket thickness, overmolded edges, insert position, holes, grooves, contact areas, and assembly surfaces.

For LSR injection molded parts, dimensional stability depends on mold accuracy, silicone shrinkage, curing condition, material flow, demolding, and post-processing. For overmolded parts, insert tolerance also affects final dimensions.

If a plastic insert varies from batch to batch, the silicone overmolded part may also vary. If a metal insert has plating thickness variation, the final sealing structure may shift. If an FPC is not positioned correctly, the silicone coverage area may move.

This is why critical dimensions should be defined before mass production. The buyer should identify which dimensions affect sealing, assembly, bonding, or electrical function. The manufacturer should then define inspection methods and sampling frequency.

For high-precision silicone parts, liquid silicone injection molding can support small structures, complex sealing features, stable dimensions, and repeatable production when tooling and process control are properly managed.

People Also Ask: What is the difference between sample approval and production approval?

Sample approval means the buyer accepts the initial sample design, appearance, and basic function. Production approval means the product is ready for repeatable manufacturing under defined quality standards.

Many projects fail because buyers approve samples too quickly without checking mass production stability. A sample can be adjusted manually, but mass production must be controlled by mold accuracy, process parameters, material consistency, insert positioning, inspection standards, and operator training.

For custom silicone overmolded parts, production approval should include clear acceptance criteria. The buyer and manufacturer should agree on what is acceptable for flash, color, bonding, dimensions, surface marks, packaging, and functional testing.

People Also Ask: Why is pilot production useful for silicone overmolded parts?

Pilot production is useful because it reveals problems that may not appear during sample molding. It helps verify mold stability, insert loading, cycle time, flash control, dimensional consistency, bonding, inspection method, and packaging process.

During pilot production, the manufacturer can test whether the mold can run continuously. The team can check whether inserts are easy to place, whether silicone flows consistently, whether parts demold smoothly, and whether defect rate is acceptable.

Pilot production also helps identify hidden problems. For example, an insert may shift only after repeated loading. A silicone edge may tear only after many cycles. Flash may increase after mold temperature changes. A package may deform the silicone part during storage.

For B2B buyers, pilot production reduces the risk of approving mass production too early. It gives both sides a chance to adjust process parameters, improve inspection standards, and confirm real production efficiency.

People Also Ask: What inspection standards should be confirmed before production?

Inspection standards should include appearance, dimensions, bonding, flash, insert position, material hardness, waterproof performance, assembly fit, packaging, and any customer-specific testing requirements.

Appearance standards should define acceptable and unacceptable defects, such as bubbles, stains, flow marks, scratches, color difference, deformation, contamination, and visible flash. For parts used in visible product areas, cosmetic standards may be stricter.

Dimensional standards should identify critical-to-function dimensions. Not every dimension has the same importance. Sealing height, gasket thickness, insert position, contact area, and assembly features should be checked more carefully.

Bonding standards should define whether peeling, edge lifting, or separation is allowed. For waterproof and overmolded parts, the bonding standard should be clear before mass production.

Packaging standards should not be ignored. Soft silicone parts can deform if packed incorrectly. Thin sealing lips may be damaged by pressure. Dust control may be important for medical, electronic, or optical applications.

A strong supplier should provide inspection support and help buyers define practical standards that can be controlled in production.

People Also Ask: How does SiliconePlus support validation before mass production?

SiliconePlus supports validation by reviewing drawings, materials, substrate conditions, mold structure, bonding risks, waterproof requirements, inspection standards, and pilot production results before full-scale manufacturing.

Shenzhen Liyongan Silicone Rubber Products Co., Ltd. focuses on custom silicone overmolding manufacturing solutions, including silicone over plastic, silicone over metal, FPC silicone overmolding, silicone over silicone, liquid silicone injection molding, compression molding, mold development, sample production, inspection, and OEM/ODM mass production support.

For terminals, inserts, brackets, sensors, and waterproof components, metal with silicone overmolding requires surface condition review, bonding validation, insert positioning, and sealing inspection.

For compact electronics, FPC with silicone overmolding requires accurate FPC positioning, exposed pad protection, silicone flow control, and electrical function awareness.

The company supports customers from early design review to mold making, sampling, trial production, inspection, and mass production. For buyers developing waterproof silicone seals, overmolded electronic parts, medical silicone components, automotive connector seals, wearable device parts, or industrial custom silicone components, early validation helps reduce rework and production risk.

People Also Ask: What should buyers prepare for production validation?

Buyers should prepare approved drawings, 3D files, sample approval comments, substrate specifications, material requirements, tolerance standards, waterproof targets, testing methods, packaging requirements, and expected production quantity.

If the project involves plastic, metal, FPC, or silicone substrates, buyers should also confirm whether the substrate will be supplied by the customer or produced by the silicone manufacturer. Insert quality directly affects overmolding quality.

If the product needs waterproof validation, buyers should define the test method clearly. If the product needs bonding validation, buyers should define pull, peel, bending, or aging requirements. If the product needs cosmetic quality, buyers should define acceptable defect limits.

A typical validation checklist may include:

Approved drawing version
Approved sample version
Substrate material specification
Silicone material and hardness
Critical dimensions
Bonding test method
Waterproof test method
Assembly test method
Appearance standard
Flash acceptance standard
Packaging method
Pilot production quantity
Inspection report requirement
Mass production schedule

Clear validation requirements help both the buyer and manufacturer avoid misunderstandings before production begins.

FAQ About Silicone Overmolded Part Validation

1. Is one approved sample enough before mass production?

No. One approved sample is not enough for high-reliability silicone overmolded parts. Buyers should also check bonding, dimensions, flash, assembly fit, waterproof performance, and pilot production consistency before mass production.

2. What bonding tests are used for silicone overmolded parts?

Bonding tests may include peel testing, pull testing, bending testing, edge lifting inspection, aging testing, or customer-specific testing. The best method depends on substrate type, part design, and application environment.

3. How do I know if a silicone seal is waterproof enough?

A silicone seal should be tested in the final assembly or a representative test fixture. Waterproof performance depends on sealing geometry, compression ratio, material hardness, mating structure, tolerance, and test condition.

4. Why does flash control matter for silicone overmolding?

Flash can affect sealing, assembly, appearance, electrical contact, button movement, and product reliability. Because liquid silicone flows easily before curing, flash control must be considered in mold design and production inspection.

5. What should be checked during pilot production?

Pilot production should check process stability, insert positioning, bonding, flash level, dimensional consistency, appearance quality, defect rate, inspection method, packaging, and cycle time.

6. Can SiliconePlus help validate custom silicone overmolded parts?

Yes. SiliconePlus can support drawing review, material selection, mold development, sample production, bonding review, waterproof testing discussion, inspection planning, pilot production, and OEM/ODM mass production for custom silicone overmolded parts.

Conclusion

Validating silicone overmolded parts before mass production is essential for reducing leakage, peeling, flash, insert shift, assembly failure, dimensional variation, and batch quality problems. A good-looking sample is only the first step. True production readiness requires bonding validation, dimensional control, waterproof testing, pilot production, inspection standards, and packaging review.

For B2B buyers, the best approach is to involve the silicone manufacturer early and define validation requirements before mass production starts. This helps reduce mold changes, sampling delays, quality disputes, and shipment risk.

Shenzhen Liyongan Silicone Rubber Products Co., Ltd. provides custom silicone overmolding, liquid silicone injection molding, silicone over plastic, silicone over metal, FPC silicone overmolding, silicone over silicone, waterproof silicone seals, medical silicone parts, automotive silicone components, 3C electronic silicone parts, wearable device seals, and industrial custom silicone components.

If you are preparing to approve a silicone overmolded part for mass production, share your drawings, samples, substrate material, waterproof target, testing standards, and production quantity with our engineering team. We can help review validation points and support your project from sampling to stable production.
