Custom LSR Overmolded Industrial Control Knob | Plastic Insert
| Share | |
|---|---|
| Categories | Industrial Silicone Products |
| Brand | SiliconePlus | Silicone OverMolding Manufacturing |
| Product Type | Custom Industrial Rotary Control Knob |
| Base Material | Customer-Specified Engineering Plastic |
| Overmolding Material | LSR / Silicone, Subject to Project Validation |
| Manufacturing Process | Silicone Over Plastic Overmolding |
| Structure | Rigid Plastic Core with Silicone Grip Layer |
| Grip Surface | Custom Texture / Grip Ribs |
| Mounting Interface | Shaft Bore or Interface as per Drawing |
| Custom Service | DFM, Tooling, Sampling and OEM Manufacturing |
| Download |  |
Detail Information
Product Overview
Custom LSR overmolded industrial control knobs combine a rigid engineering-plastic core with a molded silicone grip surface.
This integrated structure is designed for rotary controls used on industrial instruments, laboratory equipment, test equipment and operator interfaces where a defined tactile surface is required.
The silicone coverage, surface texture, color, top-face shape and shaft interface can be customized according to the customer's drawing or sample.
The proposed manufacturing process molds silicone onto selected areas of a compatible plastic substrate. The final material combination, retention design and molding feasibility must be reviewed before tooling approval.
This product is a custom knob component. It does not include the encoder, potentiometer, electrical switch or complete control panel.
SiliconePlus supports drawing-based DFM review, tooling development, sample evaluation and OEM manufacturing. Functional requirements should be confirmed using representative samples before production approval.

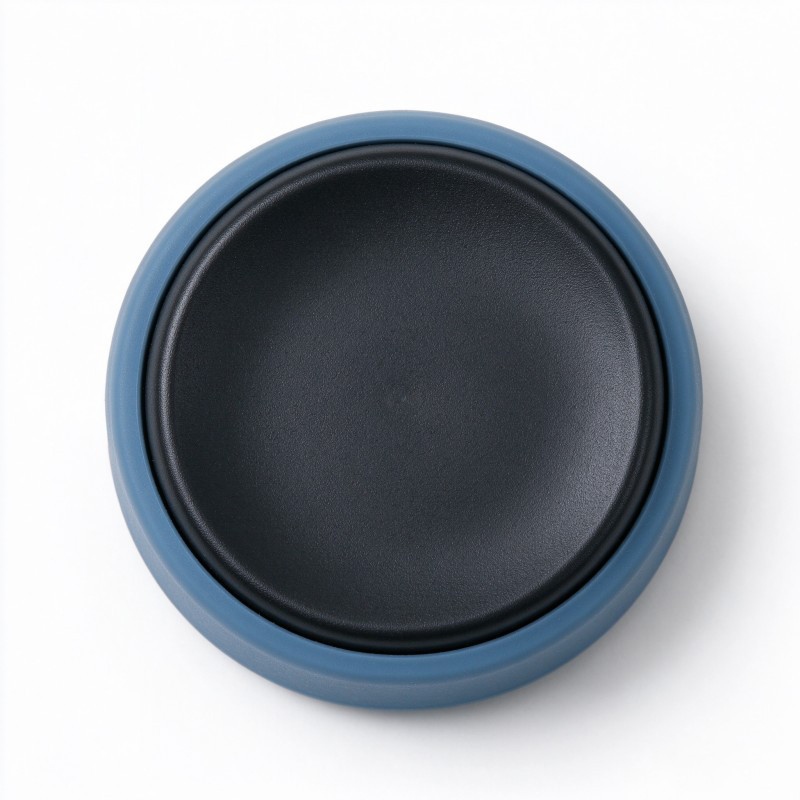

Top View of Custom Silicone Overmolded Control Knob
The top view highlights the circular control surface and the surrounding silicone overmold. The knob's dimensions, color, and surface design can be customized to match the requirements of your industrial equipment.

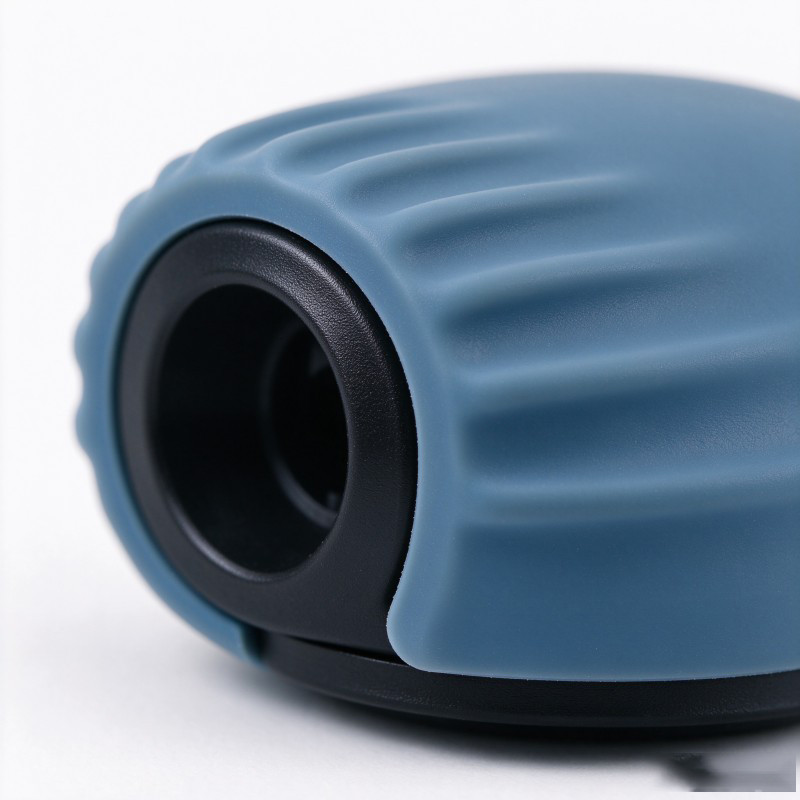

Silicone Grip Detail and Overmolding Design
The outer silicone layer is designed around a rigid plastic core to create an integrated control knob. Silicone coverage, grip texture, and color can be developed according to customer drawings or samples.
Design and Manufacturing Considerations
A custom silicone-overmolded equipment foot requires evaluation of both the metal insert and the silicone contact geometry.
Important DFM items include:
- Metal insert material and surface condition
- Thread or mounting interface dimensions
- Insert positioning inside the mold
- Silicone coverage and exposed metal areas
- Mechanical retention or validated bonding approach
- Base footprint and contact-face geometry
- Mold parting line and flash control
- Demolding and handling
- Static load and contact pressure requirements
- Surface finish of the supporting equipment
- Cleaning chemicals and environmental exposure
- Dimensional and appearance acceptance criteria
The silicone-to-metal interface must be designed and validated for the chosen insert. A generic material combination does not guarantee chemical bonding.
The appropriate silicone grade should be selected based on the required contact behavior, environment and mechanical conditions. Load, friction, wear and vibration performance should be verified using representative parts before final approval.

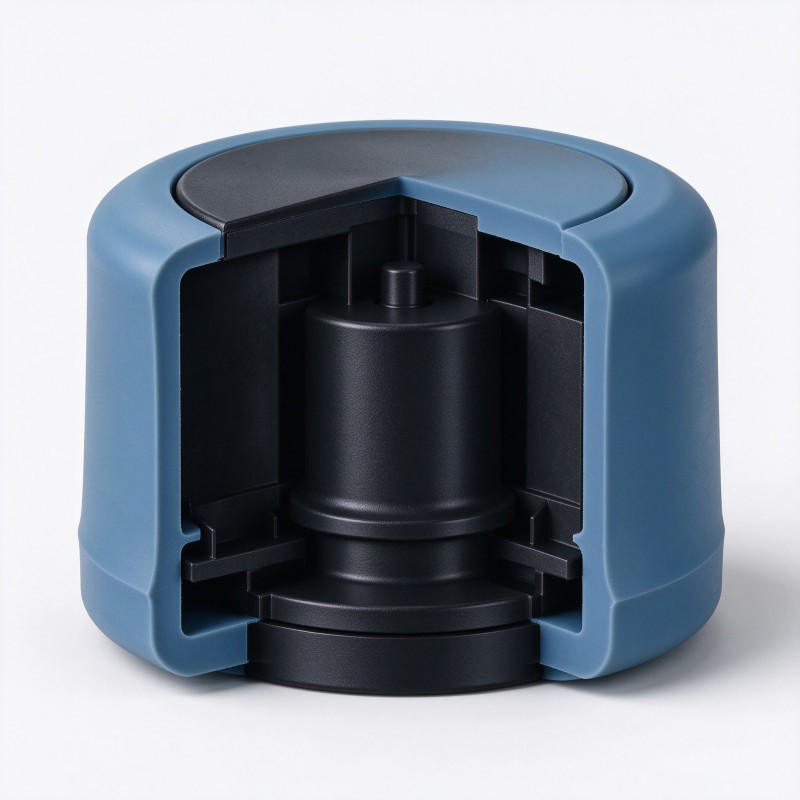

Overmolding Interface and Design Review
Before mold development, the plastic substrate and silicone material must be assessed as a compatible combination.
The DFM review should cover:
- Plastic grade and substrate geometry
- Silicone coverage boundary
- Grip texture and surface finish
- Mounting bore and shaft interface
- Insert positioning during molding
- Mold parting line and flash control
- Demolding and dimensional stability
- Silicone-to-plastic bonding or mechanical retention
- Color and appearance acceptance criteria
Bonding performance cannot be assumed from the material names alone. The selected plastic, surface condition, silicone grade and molding process must be evaluated together.
The final knob should be checked against the customer's mechanical fit and operating requirements. No torque, cycle-life or environmental rating is implied without application-specific testing.
Applications and Customization
Custom silicone overmolded control knobs may be evaluated for industrial instruments, laboratory equipment, test equipment, machine interfaces and other devices that use rotary controls.
Customization options include:
- Plastic core geometry
- Silicone grip coverage
- Surface texture
- Top-face design
- Mounting bore or shaft profile
- Color and appearance
- Tooling and production requirements
For process information, review our silicone over plastic overmolding solutions.
Customers should provide a drawing, 3D model or physical sample so the interface, substrate and molding structure can be assessed before tooling.
Request a Custom Control Knob Quote
Developing a rotary control that requires a rigid plastic core and a custom silicone grip?
SiliconePlus can review your proposed overmolding structure, plastic substrate, silicone coverage and mounting interface.
To help us assess the project, please provide your 2D or 3D drawings, material requirements, shaft interface, surface texture, estimated order quantity and intended operating environment.
Our team can evaluate the manufacturing approach, tooling feasibility and sample requirements according to your specifications.
