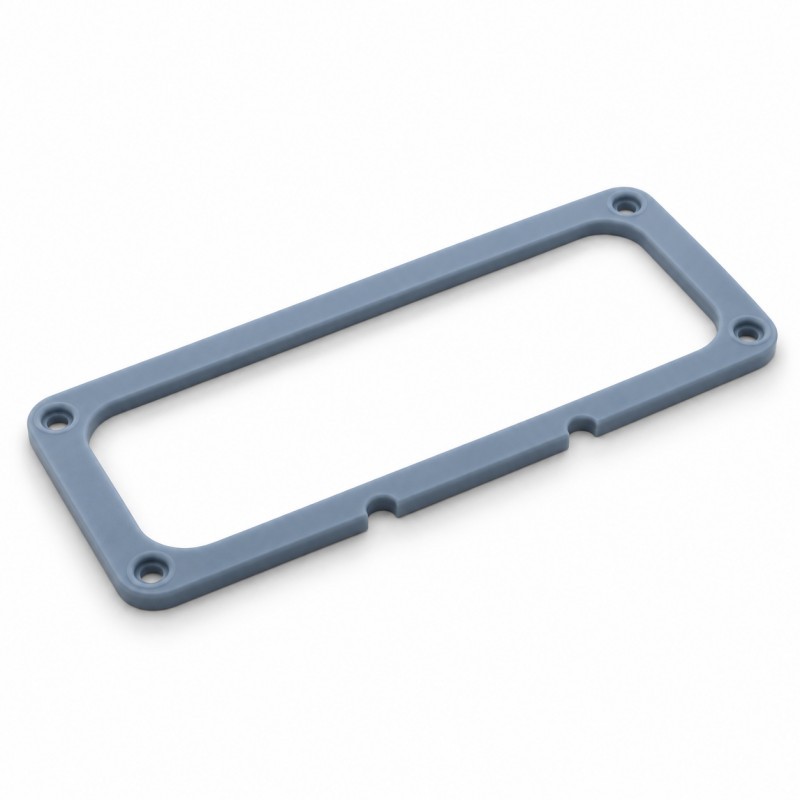

Custom Cold Plate Silicone Gasket | Liquid Cooling Perimeter Seal

The gasket is developed according to the cold plate boundary, groove geometry and compression requirement to help reduce the risk of coolant leakage during assembly and service.

Compared with using a generic standard gasket, a custom molded perimeter seal can better match non-standard outlines, corner transitions, bolt patterns and compression zones found in cooling plate structures.

SiliconePlus supports drawing-based development of custom silicone gaskets for liquid cooling applications.

If the sealing structure does not match the actual groove and compression condition, common risks may include local under-compression, leakage paths at corners, unstable sealing after thermal cycling and poor long-term assembly consistency.

A custom perimeter seal helps match the actual cold plate structure instead of forcing a standard geometry into a non-standard assembly.

For broader custom silicone component options, you can also review our Industrial Silicone Products.

Key project requirements may include:

Groove width and depth

Compression range

Gasket thickness

Material hardness

Corner radius

Bolt or fastening pattern

Sealing path continuity

Operating temperature

Long-term compression recovery

Coolant chemistry compatibility

Electrical insulation requirement

Dimensional tolerance

The final silicone material grade should be selected according to the actual coolant, temperature and sealing requirement of the project.

For projects that also involve custom silicone manufacturing development, you can review our product customization process.

During DFM review, key factors may include:

Groove geometry

Gasket cross-section

Compression percentage

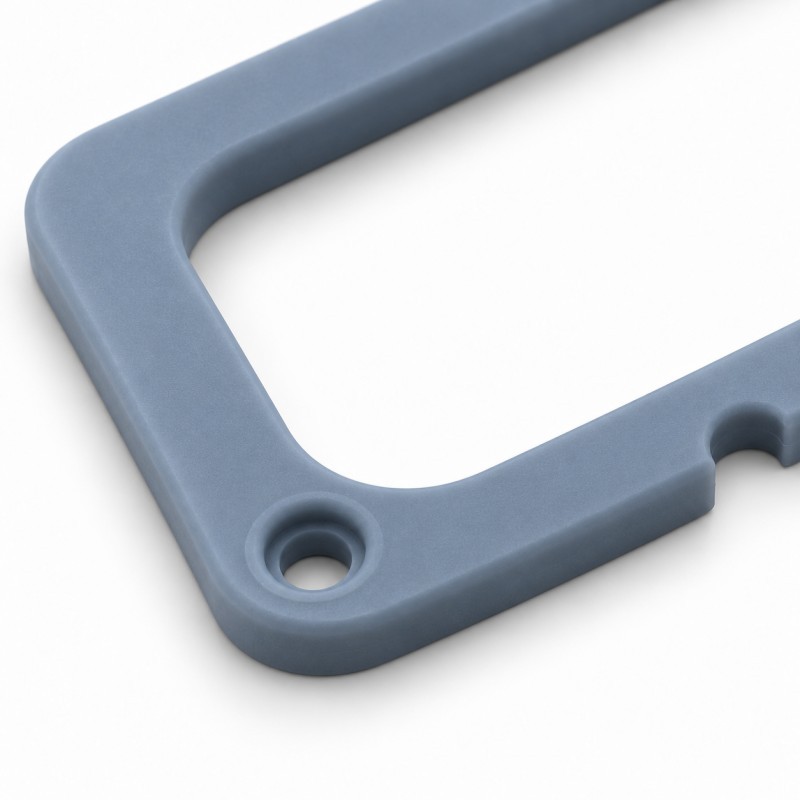

Corner transition

Fastener layout

Plate flatness

Tolerance stack-up

Local sealing pressure

Coolant contact area

Potential leakage paths

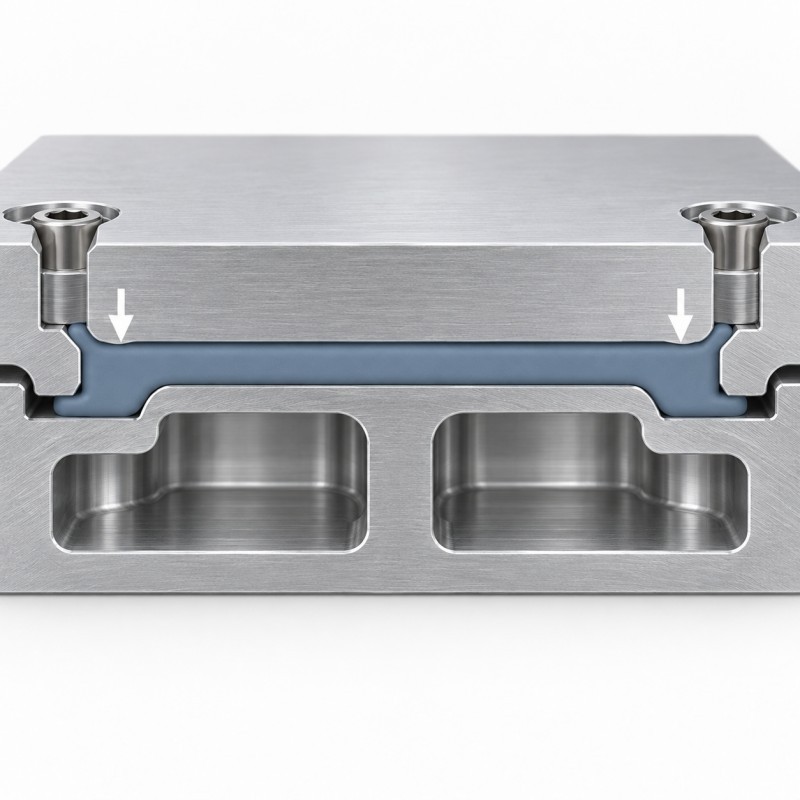

The gasket design should support consistent compression without excessive squeeze, uneven stress or unstable sealing around corners and transition areas.

For more custom molded silicone component capability, you can also review our custom silicone overmolding parts.

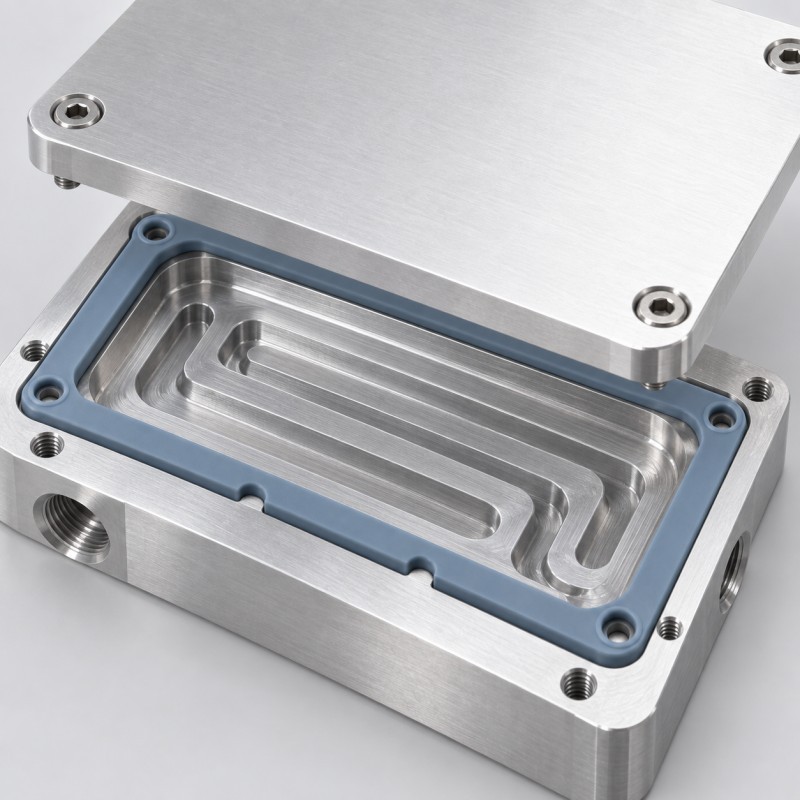

Data center liquid cooling systems

Power electronics cooling plates

EV battery or control-system cooling structures

Energy storage thermal management

Industrial cooling equipment

High-power electronic module cooling assemblies

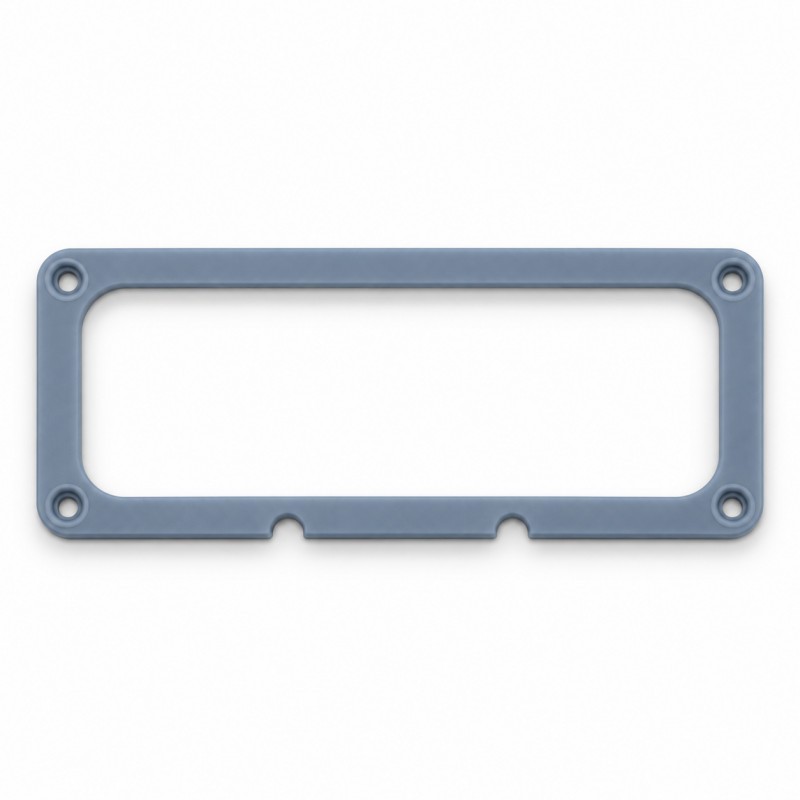

Customization can include gasket outline, thickness, corner structure, through-holes, cutouts, hardness and customer-specified sealing geometry.

If your project also requires integrated sealing or protective silicone structures for electronic assemblies, you can review our PCB silicone protection component.

To evaluate your project, please provide your 2D/3D drawing or sample, gasket outline, groove size, target thickness, sealing requirement, coolant information and estimated order quantity.

Our engineering team can review gasket geometry, groove fit, compression space and molding feasibility before sampling and mass production.

We provide custom manufacturing only. Final material selection should be confirmed according to the actual coolant chemistry and operating condition of the project.
