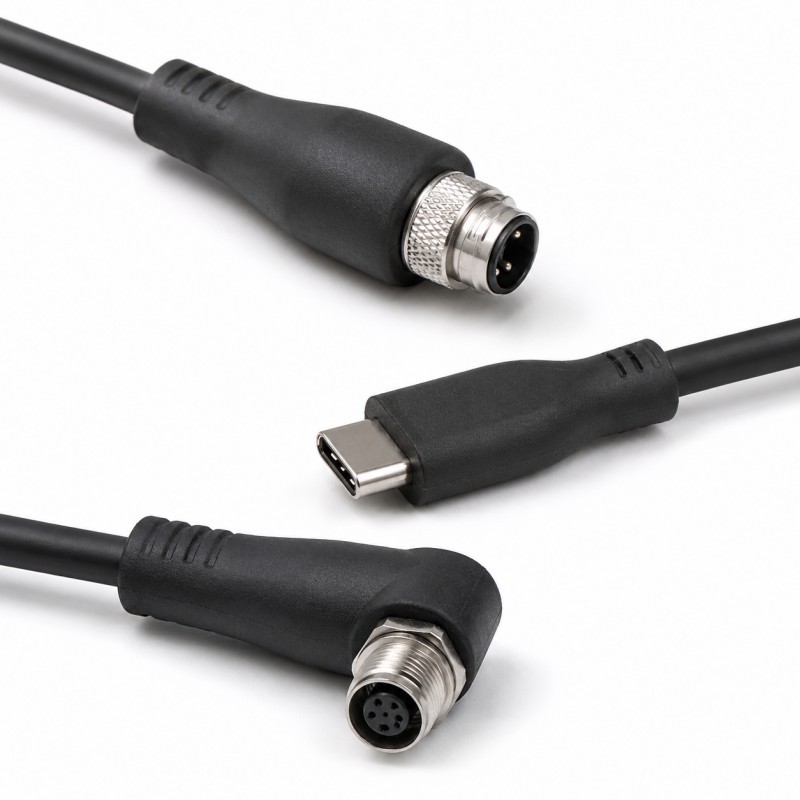

Precision Silicone Overmolded Cable Strain Relief Seal

SiliconePlus manufactures custom silicone overmolded cable strain relief seals for 3C electronics, sensors, industrial devices, outdoor equipment, charging interfaces and waterproof cable assemblies.

This product is not a standard cable or a finished electronic accessory. It is a custom silicone over wire and connector sealing component. Liquid silicone rubber is molded around selected cable or connector areas to improve waterproof protection, insulation, bending resistance and assembly reliability.

Designed for Cable End Protection

Cable ends and connector transition areas are common failure points in electronic products. Repeated bending, pulling, moisture, dust and vibration may cause cracking, poor sealing, unstable contact or early product failure.

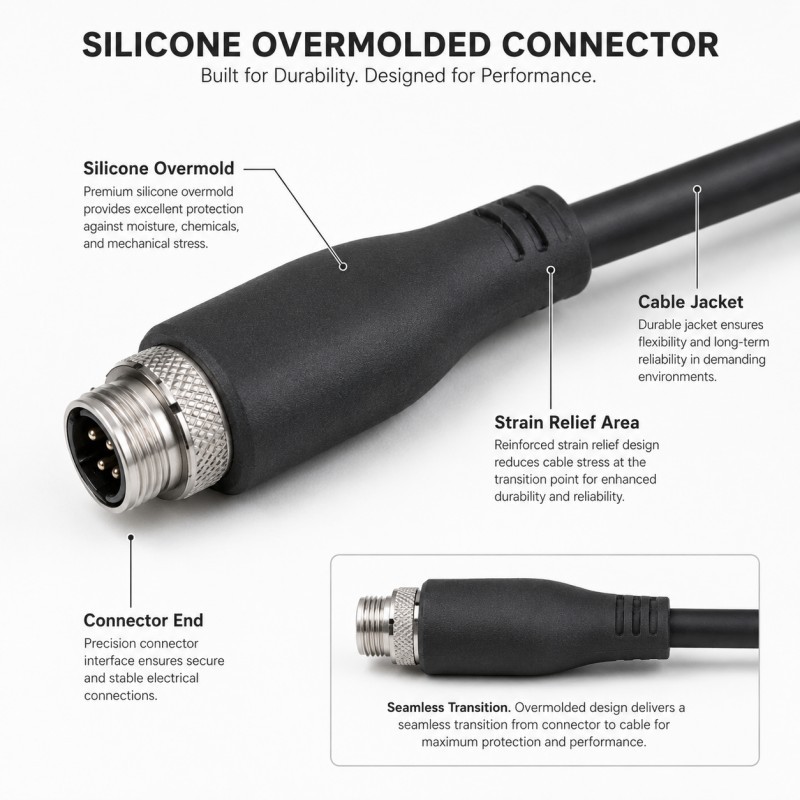

A silicone overmolded strain relief seal can help protect the transition area between the cable jacket and connector body. The silicone layer can be designed to cover the cable exit, connector end, sealing groove or waterproof transition zone according to the final product structure.

Waterproof and Strain Relief Structure

The silicone overmolded area can be customized according to your cable diameter, connector size, assembly space and waterproof target.

Typical structure options include:

• Silicone overmold layer
• Cable jacket protection area
• Connector end sealing area
• Strain relief rib structure
• Waterproof transition zone
• Anti-bending sleeve
• Pull-tab or grip texture
• Sealing edge design
• Custom thickness and hardness
• Cable positioning structure

Key Advantages

• Integrated silicone over wire structure
• Waterproof and dustproof sealing support
• Better bending and pulling protection
• Electrical insulation protection
• Soft-touch and anti-slip surface options
• Reduced risk of cable exit cracking
• Custom geometry for different cable sizes
• Suitable for compact connector assemblies
• OEM/ODM customization from drawings or samples

Application Areas

This custom silicone overmolded cable seal can be used for:

• USB cable connector ends
• Type-C cable strain relief parts
• Sensor cable assemblies
• Waterproof cable exits
• Industrial handheld device cables
• Outdoor electronic cable seals
• Charging interface cable protection
• Wearable device cable modules
• Smart hardware wiring assemblies
• Custom electronic connector sections

Custom Manufacturing Options

SiliconePlus can customize silicone overmolded cable parts based on your drawings, samples, cable specifications, connector structure and performance requirements.

Available customization options include:

• Custom cable diameter fit
• Custom connector overmold shape
• Custom silicone coverage area
• Custom strain relief rib design
• Custom silicone hardness
• Black, gray or custom colors
• Waterproof sealing edge design
• LSR injection molding
• Insert molding
• Prototype sampling and mass production

Engineering Considerations Before Mold Opening

Cable silicone overmolding requires careful evaluation of cable material, connector structure, positioning method and silicone coverage area. A poor design may lead to flash, weak bonding, cable deformation, difficult demolding or unstable waterproof performance.

Before starting a project, we recommend confirming:

• Cable outer diameter
• Cable jacket material
• Connector housing material
• Silicone coverage length
• Required bending performance
• Pull force requirement
• Waterproof test target
• Silicone hardness
• Color and surface texture
• Estimated production quantity

Quality Control for Cable Overmolding

For silicone overmolded cable strain relief parts, quality control should focus on cable positioning, overmold coverage accuracy, flash control, bonding stability, bending performance, visual appearance and waterproof test support.

SiliconePlus can support dimensional inspection, visual inspection, bonding check, bending test support, pull force test support and waterproof test support according to project requirements.

Why Choose SiliconePlus?

SiliconePlus focuses on custom silicone overmolding, liquid silicone rubber injection molding and precision silicone parts manufacturing. Our work covers silicone over plastic, silicone over metal, silicone over FPC, silicone over wire and waterproof integrated silicone components.

For cable silicone overmolding projects, our engineering team can help review cable positioning, connector transition design, silicone coverage area, sealing structure, demolding risk, flash control and mass production stability.

Send Your Cable Overmolding Project

If you need a custom silicone overmolded cable strain relief seal, waterproof cable connector overmold or silicone over wire electronic component, please send us your 2D drawings, 3D files, samples, cable specifications and technical requirements.

Our team will evaluate your project and provide a custom silicone overmolding solution.

Specifications

FAQ

1. What is a silicone overmolded cable strain relief seal?

It is a custom silicone overmolding component formed around a cable or connector transition area. It helps improve waterproof protection, insulation, bending resistance and cable exit durability.

2. Can you customize the overmold shape for our cable connector?

Yes. We can customize the silicone overmold shape according to your cable diameter, connector structure, assembly space, sealing requirement and appearance design.

3. Can the product support IP67 or IP68 waterproof design?

We can support IP67/IP68 waterproof design based on your complete product structure and assembly method. Final waterproof performance should be verified through testing on the finished assembly.

4. What cable information do you need before quotation?

Please provide cable outer diameter, cable jacket material, connector structure, silicone coverage area, drawing or sample, waterproof target, bending requirement and estimated quantity.

5. Can silicone overmolding improve bending durability?

Yes. A properly designed silicone strain relief structure can reduce stress concentration at the cable exit and help improve bending durability. The final performance depends on cable material, silicone hardness, geometry and test conditions.

6. Can you help check the design before mold opening?

Yes. Our engineering team can review cable positioning, overmold coverage, sealing structure, strain relief rib design, flash control, demolding risk and mass production feasibility before tooling.
