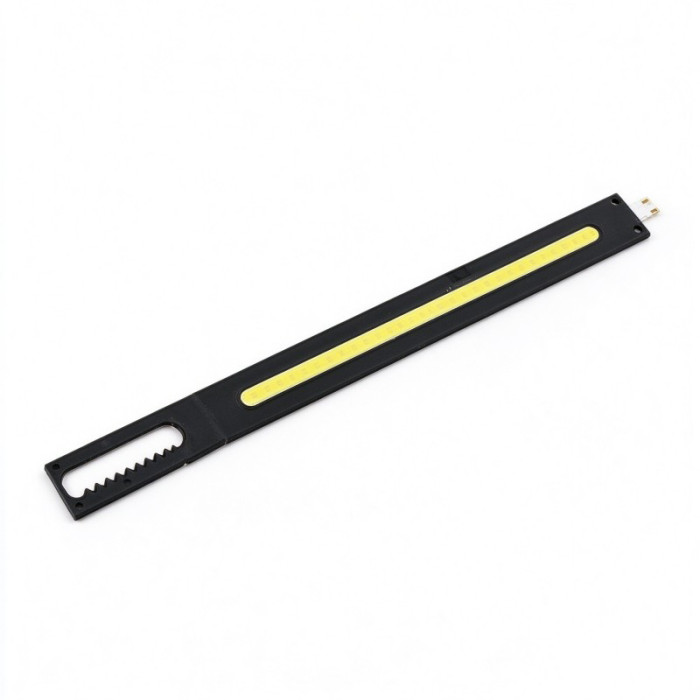

Custom Silicone-Overmolded FPC LED Strip for Wearable Head-Mounted Visibility Devices

Share
Categories	Smart Ring Silicone Covers
Brand	SiliconePlus \| Silicone OverMolding Manufacturing
Product Material	Silicone + FPC + LED assembly
Product Process	Silicone Overmolding / FPC Overmolding
Product Structure	Flexible LED/FPC assembly with silicone outer encapsulation
Product Color	Black silicone exterior; visible yellow LED/FPC area in the supplied photo
Application	Wearable head-mounted visibility devices
Customization	OEM/ODM customization based on drawings or samples
Product Type	Custom silicone overmolded electronic component
Download

Contact Now

Detail Information

Custom Silicone-Overmolded FPC LED Strip

This custom component combines a flexible LED/FPC assembly with a black silicone outer structure. Based on the supplied product sample, the elongated design is intended for a wearable head-mounted visibility application in low-light environments.

Silicone overmolding can be customized around flexible electronic assemblies according to the required shape, circuit layout, cable routing and exposed connection areas. Final construction and process feasibility should be confirmed against the customer's drawings, samples and electrical requirements.

Silicone Encapsulation Around the Flexible LED Assembly

The black silicone outer structure forms the visible exterior of this elongated flexible LED assembly. The encapsulation geometry, coverage area and exposed light-emitting region should be defined according to the actual product design and manufacturing requirements.

FPC and Cable Connection Design

Flexible circuit routing and cable exit geometry are important considerations for custom electronic overmolding. Connection areas must remain accessible where required, and the final interface should follow the customer's approved drawings or physical sample.

Design Considerations for Flexible Silicone Overmolding

For flexible LED/FPC assemblies, silicone overmolding design should consider the required bending zones, silicone coverage, cable exit, exposed electrical contacts and the position of light-emitting elements.

The molding design must avoid interfering with electrical connections or blocking the intended light-emitting area. Silicone material, bonding method and molding conditions should be selected after reviewing the FPC construction and assembly requirements.

SiliconePlus supports custom silicone overmolding projects based on drawings, samples and technical specifications.

Custom FPC Silicone Overmolding for Wearable Electronics

Wearable electronic assemblies often require a combination of flexible circuitry, cable connections and a shaped external enclosure. Silicone overmolding can integrate a soft outer structure with selected areas of an FPC assembly, depending on the product design and process feasibility.

Potential design considerations include:

- Flexible circuit positioning and protection

- Silicone coverage around the electronic assembly

- Cable routing and connection interfaces

- Light-emitting area exposure

- Bending requirements and assembly constraints

For details of our manufacturing approach, see our FPC with Silicone Overmolding Manufacturing Solutions.

Discuss Your Custom Silicone-Overmolded LED Assembly

Looking for a manufacturing partner for a custom silicone-overmolded LED/FPC assembly?

Send us your product drawings, samples, circuit layout and cable interface requirements. Our team can review the proposed silicone encapsulation structure, discuss manufacturing feasibility and provide a quotation based on the confirmed specifications.

Contact SiliconePlus to discuss your project.
